Thermo Scientific Jewett Brand Refrigerators: JLR3004V22

Lab Equipment Parts

Home > Lab Equipment Parts > Refrigerators > Thermo Scientific Jewett > JLR3004V22

Parts for JLR3004V22

Place an Order

ImageSKUDescriptionPackagingQtyPrice
View195763RETAIN'G BRACKET FOR CORDea$40.20
View26860H02Evaporator Coilea$284.42
View28109G03 SBattery 12V/1.2 Ahea$93.17
29333G14 SEvaporator 230vea$516.00
View300367H01ACCUMULATOR -30'(HLT30V-4BBSA1ea$27.30
View301367H01R.H. Hinge Brkt Bottom Assy - solid doorea$29.15
View301367H02L.H. Hinge Brkt Bottom Assy - solid doorea$24.12

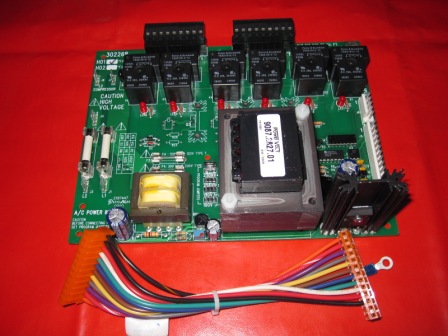

View302268G02H03 Power Supply Board w/fuses 230vea$339.60
View302363G30 SE-Prom Asy, Refrigeratorsea$75.00
View302819H03RELAY, SPST 30A 240V COIL NAISea$50.53
View303308H01Fuse, Slo-Blo, 15A 3AB 1.25"ea$8.00
View304708H01Bracket, Hinge - Top - R.H. - solid doorea$20.10
View304708H02Bracket, Hinge - Top - L.H. - solid doorea$21.11

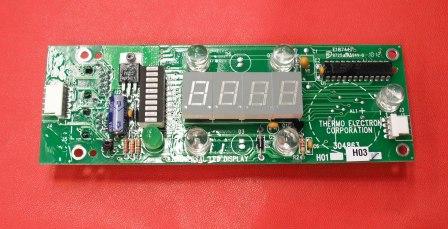

View304863H03Refrigerator Display Boardea$351.75

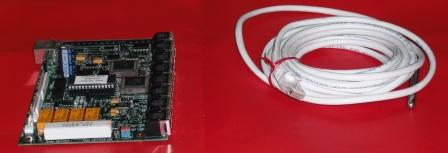

View304864G30Control Board w/E-Promea$815.70
View305101H01Pilaster, Right & Leftea$42.08
View305371H01Caster, 2" Dia, with Brakeea$34.65
View309111H016 Pin RJ45 Harness - Displayea$38.85
View309112H0210 Pin RJ45 Harness - Displayea$47.25
View309159H12Temperature Sensor - Display (green)ea$442.05

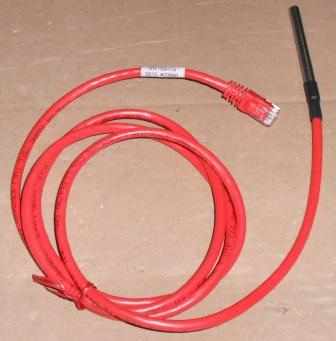

View309159H14Control Senor (red)ea$207.90
View309327H01Fuse, Slo-Blo, 300mA 5x20mmea$15.00

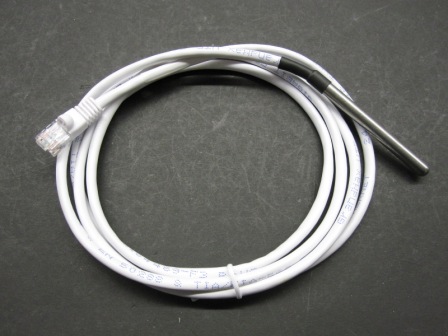

View312096H04Defrost Sensor (white)ea$146.73
View312598H01Pressure Switch, HM200-24-0005ea$36.18
View313408G02Fan Motor Evaporator 230vea$112.94
View313899H11Label, Jewett, Ref/Frzea$5.00
View314191H01NAMEPLATE, THERMO LARGEea$29.03
View314720H02Overlay with 3 buttons, no light switchea$51.60

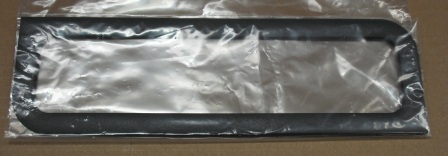

View314722H02Bezel, Display Grayea$21.50
View314744H01Top 5 LED assemblyea$251.55
View314751H01Panel, Top LED mountingea$89.00
View314751H02Panel, Top LED mounting s/sea$89.00
View314783H01LED Power Supply with harness, universal voltageea$172.00
314810G04 SSolid Door - R.H. 30'ea$564.38
314810G08 SSolid Door - L.H. 30'ea$525.00
View314819G01Hinge Hole Cover, RH (goes with LH door)ea$140.00
View314819G02Hinge Hole Cover, LH (goes with RH door)ea$140.00

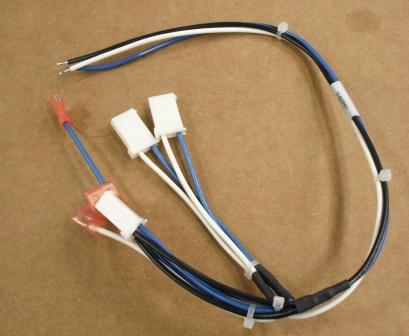

View314830H01Harness, Light Switch / Relayea$66.00
View314864H01Door Switch, Rockerea$26.88
View314880H01 PANEL,TOP REAR 30' grill ea$160.00
314892H01Upper Side Panel - Paintedea$54.26

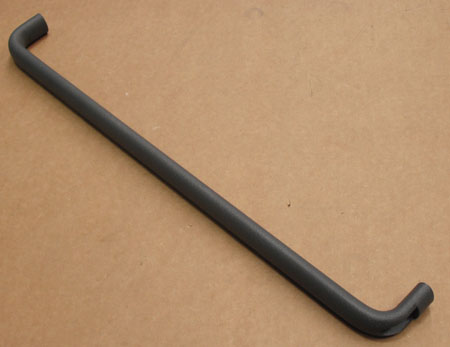

View314894H03Assm, Handle Charcoal Ref/Frz 12-75' - solid doorea$123.63

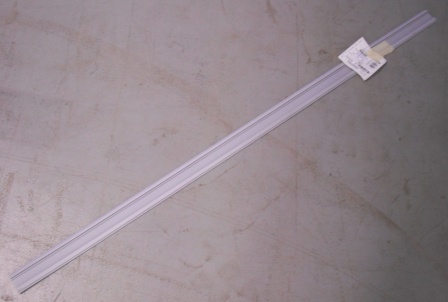

View32631H01Breaker Retainer - sidesea$16.00

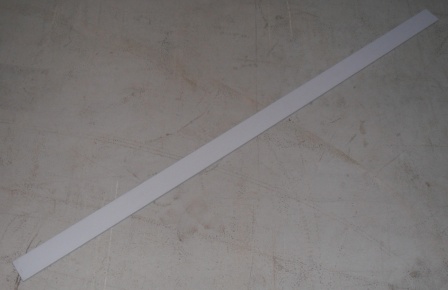

View32631H02Breaker Cover - sidesea$7.53
View32961H01Corner Trimea$6.45
View34013G01Lock Strike 23,30' Solid Door - must specify color when orderingea$36.05
View34331H01Breaker Retainer - top/bottomea$9.00

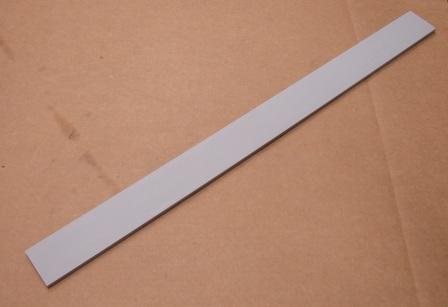

View34331H02Breaker Cover - top/bottomea$6.00
View34332H02Door Frame Heater 230vea$106.43

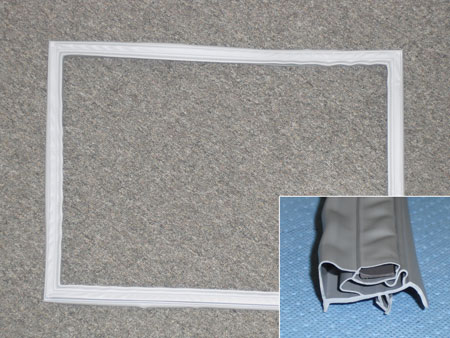

View38497H07GASKET, DOOR 2 POLE 30'. (Measures 31.59 x 59.53 to center)ea$38.19
View39022H01 PANEL,TOP FRONT 30' grill ea$119.59
View39473H01Caster, 3" Dia, w/Brakeea$66.44
View39474H01Caster, 3" Dia, w/o Brakeea$58.05
View395172 SLeveling Legs (set of 4)ea$45.58
View49060H01Caster, 2" Dia, with out Brakeea$36.18

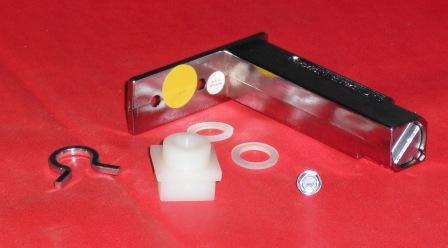

View49231H02Power Cartridge door hinge, solid doorea$40.20
View60196G01 SCONDENSATE SUMP WELD ASYea$93.75
View60523H01SUPPORT,SHELF CLIP KBea$6.34

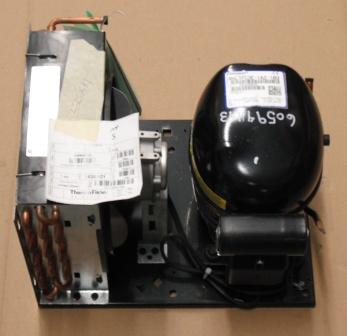

View60594H43Condensing Unit 230 Volt / 50Hzea$652.53
View61429H03Lock, Comp. Hdwr, solid doorea$31.70
View80080G08 SSENSOR BOTTLE ASY,S/S SERea$43.10

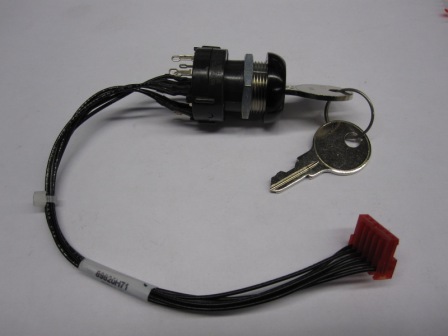

View89820H71Key Switch Harness Assy. (Replaced with 316092H02)ea$61.95
View97713H01Key A126ea$19.10





This site contains the most frequently requested Thermo Scientific Laboratory Equipment replacement parts, including those for a number of discontinued products. If you don't find the part you need, please call us at 1.866.984.3766.
